Tea sorting machine/food processing machine from China manufacturer

Tea sorting machine/food processing machine

Price:	37000.0~51500.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HJ-CD4R

Production Capacity: 25sets/Month

Delivery Date: 15 days

Color: Green

Camera: TOSHIBA/CANON

Place of origin: Hefei,China

Means of Transport: Ocean

Packing: In wooden case

Brand Name: HUOJU

Material of frame: Steel or stainless steel

Filter: YSC/CKD

Intelligent touch screen
Automatic control
Multi-function,suit for different materials
Firm frame
New design with different color

Jasmine tea 5000*3 CCD color sorter

Jasmine tea 5000*3 CCD color sorter
Description:

1.Our control chip is made in the USA.The combination of DSP and FPGA produces powerful computing capabilities.It has extremely fast data collection and can process large amounts of information and perform various operations stimultaneously.Distinguished performance to kinds of colorful products in graininess

2.300mm wide chute which is smoothness, abrasion-resistance, resistance to wear and tear and corrosion-resistance is built with a special anodizing process and was designed to meet specifications required for many applications around the world.

3.CCD Camera:A Japanese high-end 5000*3 pixel CCD chip camera can identify spots as small as 0.04mm.When coupled with intelligent algorithms,the optical design provides a more accurate color selection.

4.Ejectors: Matrix from Italy.The ejectors contain a high-frequency electromagnetic solenoid valve that operate with a 14 billion millisecond precision and a consistency of near-zero error to ensure high accuracy.

5.Adopted with high-brightness,lasting stability and longer life-time LED light which not only help save more power but also reduce cost.

6.Professional researching and developing team have researched a special program which make the machine easily distinguished different color with the program,such as red,blue,green,yellow and so on.the program can ensure the sorter have a distinguished sorting effect.

7.Large LCD touch screen,a friendly user interface, easy to learn and operate.

Competitive Advantage:
1.5000*3 pixel CCD camera and photo processing technology
2. Recognition accuracy up to 0.04mm
3. Passed CE, UL, ETL, ISO9001
4. LED TFT real 10 inch screen
5. Self checking system

6.Matrix ejector make sure the performance of machine more stable.

Specification of Jasmine tea 5000*3 CCD color sorter:

ITEM.NO	HJ-CD2R	HJ-CD3R	HJ-CD4R	HJ-CD5R
Machine weight(kg)	900	1000	1100	1200
channels(big/small)	63/189	63/189	84/252	105/315
ejectors	252	378	504	630
light source	LED light	LED light	LED light	LED light
pixel of camara	5000*3	5000*3	5000*3	5000*3
Materials handling capacity (T/H)	0.1-0.2	0.2-0.3	0.4-0.5	0.5-1.0
Color sorting accuracy	>99.95%	>99.95%	>99.95%	>99.95%
Optimal carryover rate	>10:1	>10:1	>10:1	>10:1
Host power	1.2	1.2	1.4	1.6
Air pressure	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
Air consumption (L/min)	600-2000	600-2000	700-2500	700-2500
Power supply (Voltage/HZ)	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ

Air-supplied system of Jasmine tea 5000*3 CCD color sorter:

Air storage tank
Volume of storage: one cube meter

Air compressor
Power:11kw+11kw
Voltage and frequency:380V/50HZ

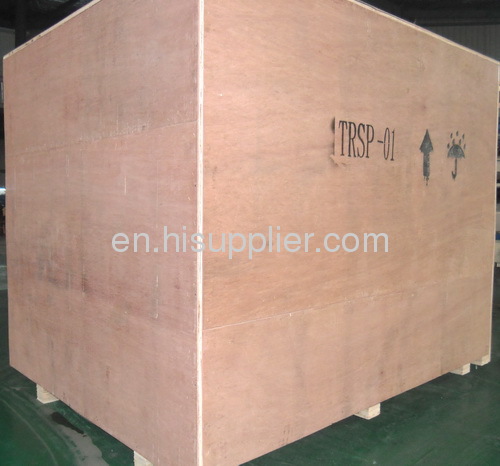

Packing Details of Jasmine tea 5000*3 CCD color sorter:
The machine and spare parts would be packed in 4 wooden cases as below:
Case No 1:color soter
Case No 2:air compressor
Case No 3:air storage tank
Case No 4:spare parts

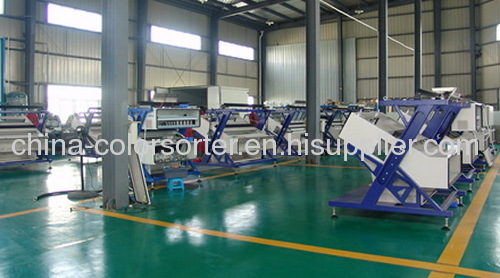

Workshop of Jasmine tea 5000*3 CCD color sorter:

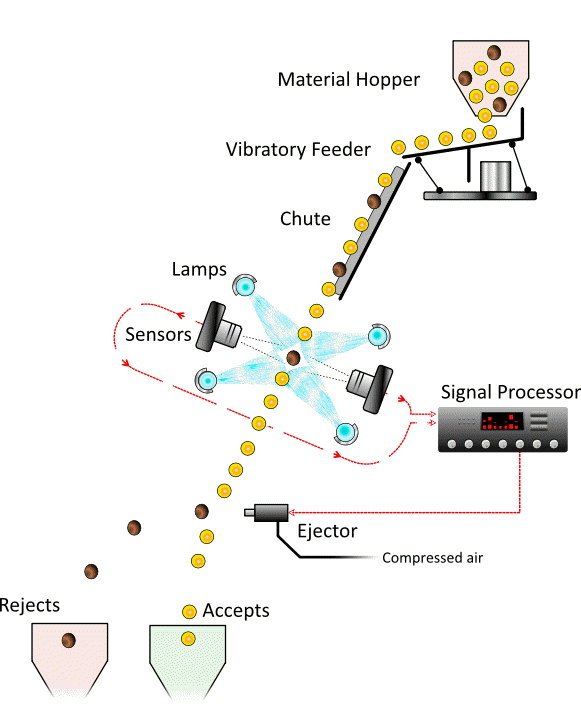

Flow chart of Jasmine tea 5000*3 CCD color sorter:
