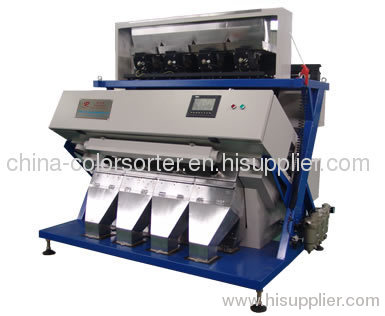

Pumkin seeds high working capacity CCD color sorter

Description:

1.Our control chip is made in the USA.The combination of DSP and FPGA produces powerful computing capabilities.It has extremely fast data collection and can process large amounts of information and perform various operations stimultaneously.Distinguished performance to kinds of colorful products in graininess

2.300mm wide chute which is smoothness, abrasion-resistance, resistance to wear and tear and corrosion-resistance is built with a special anodizing process and was designed to meet specifications required for many applications around the world.

3.CCD Camera:A Japanese high-end 5000*3 pixel CCD chip camera can identify spots as small as 0.04mm.When coupled with intelligent algorithms,the optical design provides a more accurate color selection.

4.Ejectors: Matrix from Italy.The ejectors contain a high-frequency electromagnetic solenoid valve that operate with a 14 billion millisecond precision and a consistency of near-zero error to ensure high accuracy.

5.Adopted with high-brightness,lasting stability and longer life-time LED light which not only help save more power but also reduce cost.

6.Professional researching and developing team have researched a special program which make the machine easily distinguished different color with the program,such as red,blue,green,yellow and so on.the program can ensure the sorter have a distinguished sorting effect.

7.Large LCD touch screen,a friendly user interface, easy to learn and operate.

Competitive Advantage:
1.5000*3 pixel CCD camera and photo processing technology
2. Recognition accuracy up to 0.04mm
3. Passed CE, UL, ETL, ISO9001
4. LED TFT real 10 inch screen
5. Self checking system

6.Matrix ejector make sure the performance of machine more stable.

Specification of Pumkin seeds high working capacity CCD color sorter:

PARAMETER OF COLOR SORTER

Spare parts of Pumkin seeds high working capacity CCD color sorter:

Air storage tank
Volume of storage: one cube meter

Air compressor
Power:11kw+11kw
Voltage and frequency:380V/50HZ

Packing Details of Pumkin seeds high working capacity CCD color sorter:
The machine and spare parts would be packed in 4 wooden cases as below:
Case No 1:color soter
Case No 2:air compressor
Case No 3:air storage tank
Case No 4:spare parts

Flow chart of Pumkin seeds high working capacity CCD color sorter:

Drawing of HJ-C4R Feeder Hopper and Work Table of Pumkin seeds high working capacity CCD color sorter:
